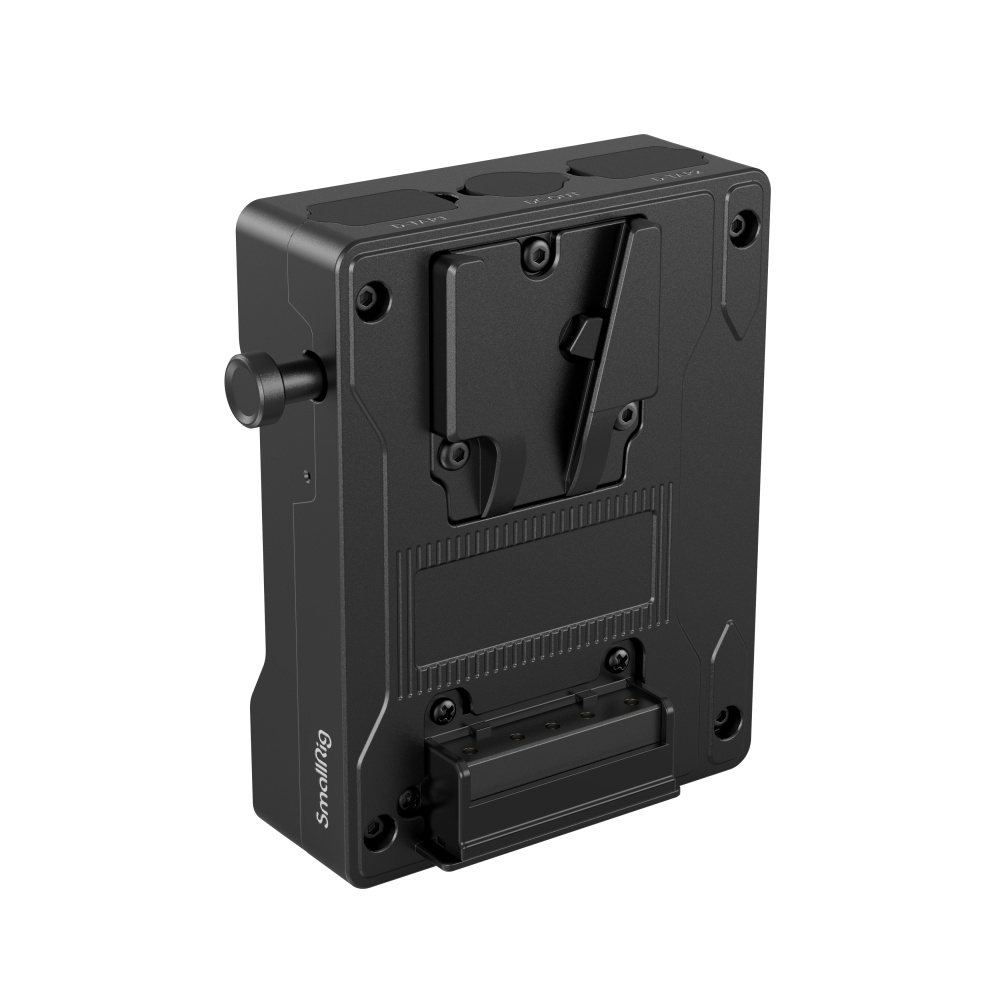

SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898

Description

SmallRig V-Mount Battery Plate Adapter for RED V-RAPTOR 3898 is designed to connect large V-Mount battery to RED V-RAPTOR and power other devices, if needed. Simply snaps it directly onto the back of RED V-RAPTOR before attaching a V-Mount battery; it becomes operative when the indicator light is on. By pressing the unlock button on the left, you will quickly remove the battery. The plate also comes with two D-Taps and one DC output port for powering monitors, image transmission system, etc.

Designer: JerryZhang

Compatibility:
RED V-RAPTOR

In the Box:
1 x V-Mount Battery Plate Adapter

Input:   V-Mount 11V ~ 16.8V / 21A Max
Output:  V-Mount 11V ~ 16.8V / 21A Max
              D-TAP1 11V ~ 16.8V / 60W Max
              D-TAP2 11V ~ 16.8V / 60W Max
              DC OUT 11V ~ 16.8V / 60W Max

Product Dimensions: 94 × 40 × 105mm
Package Dimensions: 140 × 105 × 55mm
Product Weight: 242g±5g
Package Weight: 277g±5g
Material(s): Aluminum Alloy
